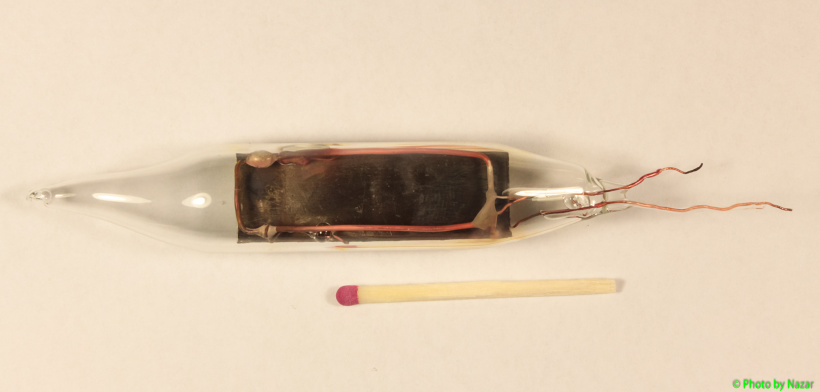

Самодельная лампа с плоским катодом
Решил сделать лампу с наполнением из разреженного воздуха с катодом большей площади. В качестве него была использована листовая нержавейка, анод же согнут из медной проволоки. Оба электрода между собой соединены платинитом с изолирующими вставками из стеклянных бусин. Для паек использован высокотемпературный припой. Лампу сильно не откачивал чтобы не происходило быстрого жестчения, но наверное это таки надо было сделать, ибо вскоре после начала работы площадь свечения катода уменьшилась - хоть и постарался максимально очистить электроды и колбу видимо все равно какая-то грязь чуть осталась и испарилась.
